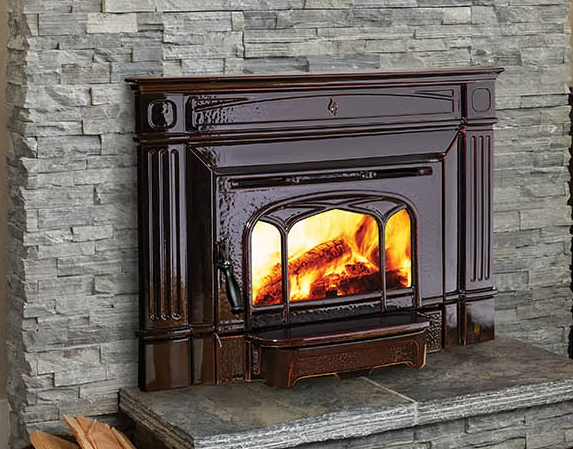

This Hampton HI1150 cast wood insert installs easily into your existing fireplace adding the timeless beauty of cast iron while eliminating drafts from an open fireplace. This fireplace insert can deliver up to 55,000 BTU of high efficiency heat decreasing your heating bills and increase the value of your home.

Backed by the industry’s most comprehensive Limited Lifetime Warranty.

Standard Features

EPA Certified
Decorative Cast Iron Grill
Heavy duty cast door with elegant varnished wood handle
Side mounted single draft lever for heat adjustment
High performance brick lined firebox
Dual-burn design creates longer and more complete burns
Heat radiating ceramic glass provides maximum warmth
Cast iron exterior provides additional radiant heating
Backed by the industry’s most comprehensive Limited Lifetime Warranty
Airwash system
6″ flue

Description

Black or Timberline Brown Enamel finish
Two speed blower
Standard or Offset flue adapter
Flue connectors

‍

Installation Manual

Product Manual

Manufactuer's Website

Features

Specifications

Maximum BTUs/hr 55,000

Heats Up To 1200 sq ft

Efficiency 70%

Product Size Small

Log Size 18″

Burn Time up to 8 hrs

Firebox Capacity 1.3 cu. ft.

Emissions (gms/hr)1.7

Room Size Small

Vent Type Stainless

Vent Size (Exhaust) 6″

Types Of Fireplaces Masonry Only

Dimensions

Appliance Dimensions

Width 25″

Height 19 1/2″

Depth 15″ With Standard Flue Adaptor Or 18 1/16″ With Offset Flue Adaptor

Hearth Requirements

Insert At Flush Depth From Opening 16″ Depth Of Hearth Is Needed

Surround Sizes

Cast Iron Faceplate 38 5/16″ Width X 27 1/4″ Height

Custom Backing Plates Can Be Made

Mantle Clearances

Clearance Required 34″ Mantle Sticking Out Up To 3 1/2″

Clearance Required 39″Mantle Sticking Out Up To 12″

Note: Minimun To facing is 33″ sticking out 1 1/2″” thick.

Minimum Fireplace Opening

Width 25″

Height 19 5/8″

Depth 15″ Or 18 1/16″ with Offset Flue Adaptor
